Raleigh (Wake County), NC Flood Zone & Drainage Map

Address
Overview

Where does rainwater drain in Raleigh? This interactive map shows surface drainage patterns across Raleigh, North Carolina, based on terrain shape: where gravity directs rainwater based on elevation and slope. For official flood risk information, see the FEMA flood zone layer on the Hazards tab.

For a Raleigh property, compare terrain-based drainage with the separate FEMA flood zone layer. FEMA records 1,165 flood insurance claims in Raleigh since 1978, the most in 1996 (Hurricane Fran). Inside city limits the ground ranges from about 179 to 490 feet above sea level (USGS 3DEP). Terrain flow lines are not a record of past flooding at a house or a prediction of stormwater depth. Choose a location to see surface drainage analysis and water flow direction based on terrain shape. The first three locations are free.

Interpretation

Select a location on the map or enter an address to see terrain analysis.

3D Terrain Visualization
Where does rainwater flow based on terrain shape? Blue areas show where water collects and drains downhill.
Units
Report a problem
—

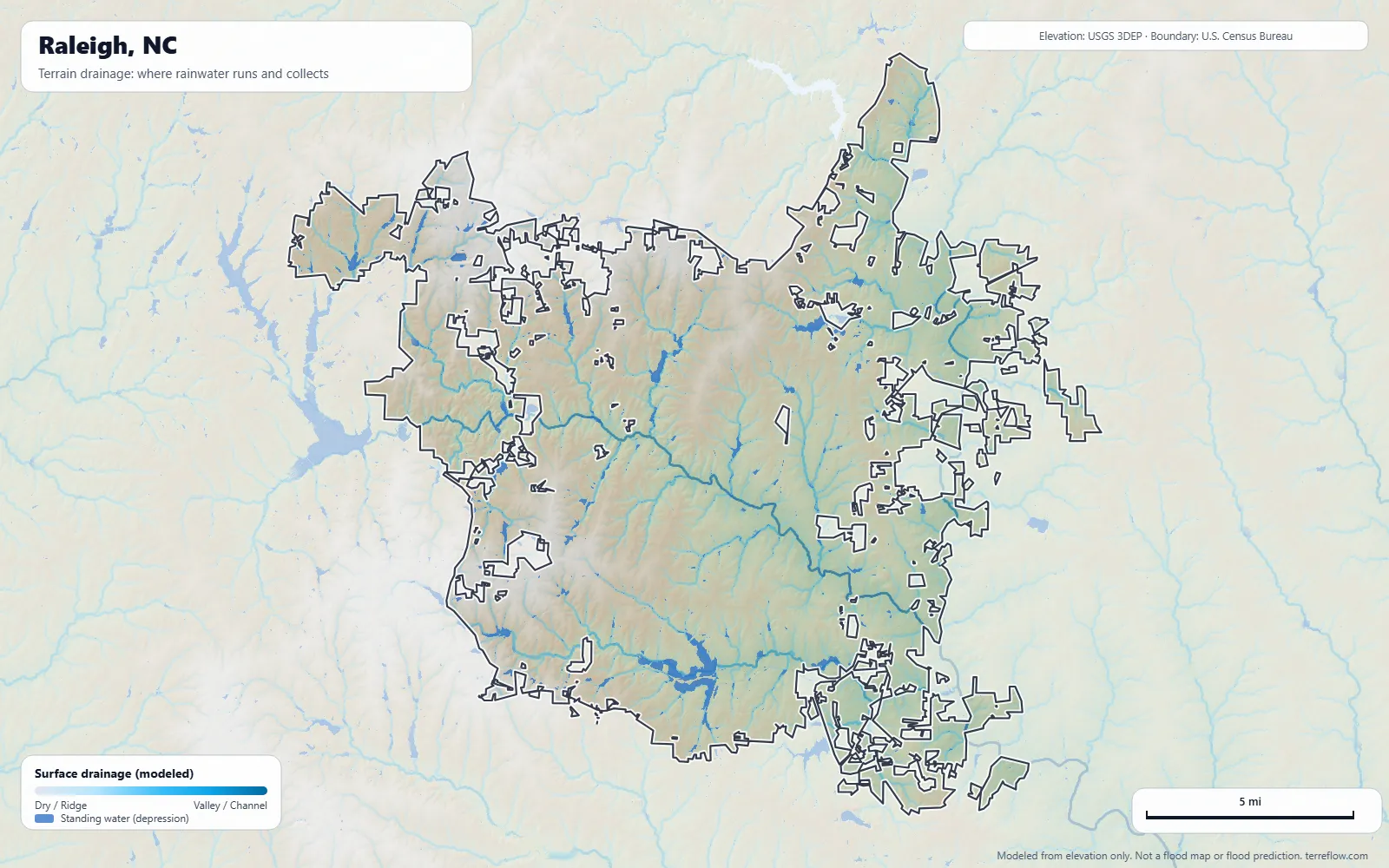

Terrain drainage map of Raleigh, NC: modeled paths where rainwater runs and collects, from USGS 3DEP elevation data, with the city boundary Click any spot on the map to analyze it
4.0× Horizontal:Vertical
Elevation loading...

Raleigh flood history

FEMA records 1,165 flood insurance claims in Raleigh since 1978. 32% of the claims with a rated flood zone came from moderate- or low-risk zones (X, B or C), outside the high-risk areas on FEMA’s flood maps.

Among the 50 largest U.S. cities, Raleigh ranks #17 for FEMA flood insurance claims per home: 5.2 claims per 1,000 homes since 1978 (1,165 claims within city limits). See all 50 cities

Bar chart of FEMA flood insurance claims per year in Raleigh, NC, 1978 to 2026, highest in 1996 (Hurricane Fran) with 317 claims.

Biggest flood years

  1. 1996 · Hurricane Fran · 317 claims
  2. 2006 · 115 claims
  3. 1999 · Hurricane Floyd · 105 claims
  4. 2016 · Hurricane Matthew · 98 claims
  5. 1995 · 55 claims

ZIP codes with the most claims

ZIPClaimsShare
2760425221.6%
2760924921.4%
2760821518.5%
27606948.1%
27610837.1%
27612706.0%
27607423.6%
27615393.3%

How to read this. These are National Flood Insurance Program claims, so they count only insured buildings and miss flooding where owners had no flood insurance. FEMA publishes them without names or addresses: they show which years and areas flooded, never whether a particular house did. They are the claims rated in the city’s own NFIP community, which covers the city limits. ZIP codes are as reported on the claims, and a ZIP code can extend beyond the city. The “rated” flood zone is the one used to price the policy and may come from an older map. Data as of 2026-09-08, from FEMA OpenFEMA.

Next: look up the flood zone for an address · how to check whether a specific house has flooded · why Zone X can still flood · how to read the drainage map

Sunlight and soil in Raleigh

Sunlight. Ground here gets about 4.6 kWh of sunlight per square meter per day on average, close to the middle of the lower 48 (4.5). South-facing slopes get more, north-facing ones less.

Soil. The ground is mostly loamy soil over a clay-rich subsoil (Acrisols 92%, Alisols 4%, Luvisols 4%). Rain soaks in, then slows at the clay layer.

The Solar and Soil tabs on the map above show both for any address. Read more: how much sun does my property get? · what soil type is my property, and how it affects drainage

Sunlight: long-term average on flat ground from the National Solar Radiation Database (National Laboratory of the Rockies, formerly NREL). Soil: most likely soil types from ISRIC SoilGrids, a 250 m model, not a survey of any lot. Both cover the map area above.
